제품 정보
| Product | 747 |
|---|---|
| Code | SLL-747-10, SLL-747-20, SLL-747-50, SLL-747-150 |
| Volume | 20g,50g, 150g |
| Products Summary | Mid-Viscosity(100~120 cps) Ultra Fast Adhesion |
Product description
| - Mid-viscosity (100~120cps) - Ultra fast adhesion - Twist cap for the volume control and anti-blocking * Twist Cap (Patent No.10-0786203 ) |
 |
 |
 |

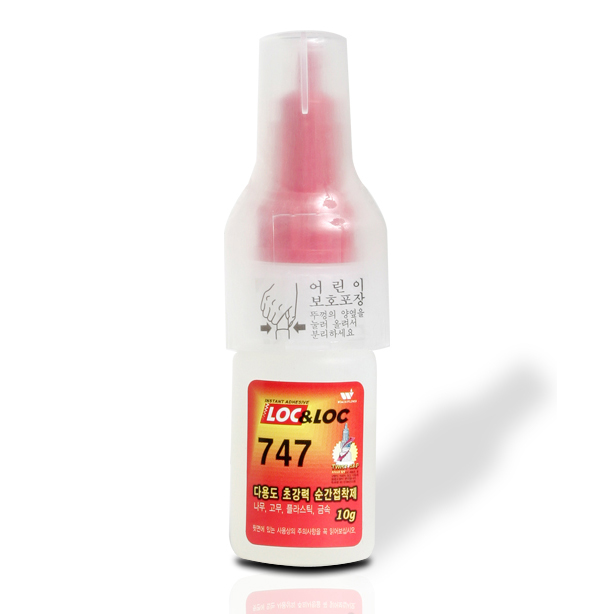

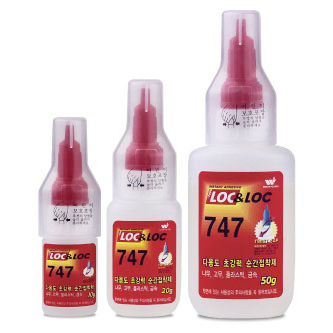

Type : 747 10g |

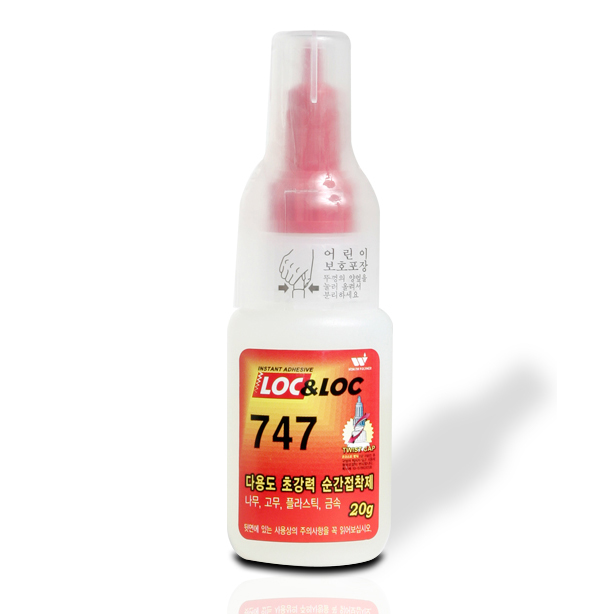

Type : 747 20g |

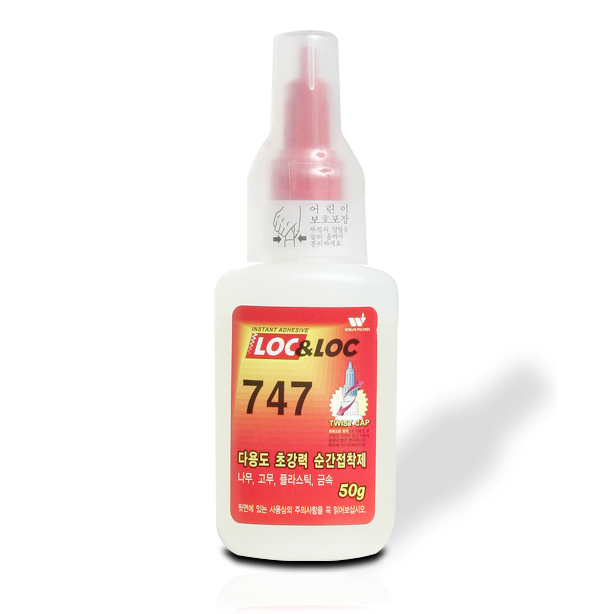

Type : 747 50g |
Feature
| Appearance | Clear Liquid |
| Viscosity | 100~ 120cps |
| Specific Gravity | 1.1 |
| Ingredients | Etyl cyanoacrylate |
| Solubility | Acetone |
| Flash Point | 80℃ |
Set Time, Tensile strength
| Materials | time (sec) | Tensile strength |
| vinyl chloride | 2 ~ 5 | 5 |
| Metal Plate | 5 ~ 15 | 21 |
| Aluminium | 18 | 14 |
| ABS | 6 | 6 |
| PC | 2 ~ 5 | 10 |
| NBR | 2 ~ 5 | 0.7 |
| paper | 8 | 0.7 |
| RUBBER | 2 ~5 | 0.7 |
1) cps : centi poise (Water is 1.01 cps at 20℃)
2) Test method : JIS k6861(1997) for cyanoacrylate
3) * : meterials were broken while testing
Packing Unit
- 10g : 30ea / box, 540ea / carton- 20g : 25ea / box, 400ea / carton
- 50g : 20ea /box, 240ea / carton
- Other : 5g, 100g, 150g, 500g, 1kg, 2kg, 20kg
(Contact us for quotation)
How to use 747
Bond terms
- Working time : It is the time that a mixture is able to coat after two liquid stirring a mixture.
(Usually the initial viscosity will be double times or nearly 60% of peak heating time.)
- Setting time : It is the time that bond strength and physical properties(tensile, compression, hardness, etc.) are almost stable.
- Tensile strength : It is result of maximum load divided by the area, when the applied adhesive things then test for tensile strength.
- Thixotropy : It is gel in the stationary status. Only it turns to liquidity as application of agitation or vibration. After leaving it, it turn back to the gel status.
