제품 정보
| Product | 4011 150g |
|---|---|
| Code | SLL-4011-10,SLL-4011-20, SLL-4011-50, SLL-4011-150 |
| Volume | 20g,50g,150g |
| Products Summary | Mid-viscosity(80~120cps), Fast Adhesion |
Product description

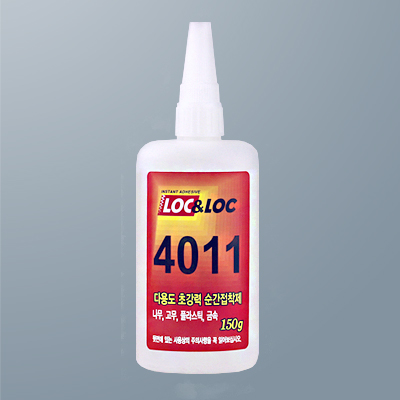

Instant Adhesive 4011 150g |
- Mid-Viscosity - Childproof cap (Push-down type) appilcable |
 |
 |
 |
Type : 4011 20g |
Type : 4011 50g |
Type : 4011 150g |
■ Feature
| Appearance | Clear Liquid |
| Viscosity | 85 ~ 102cps |
| Specific Gravity | 1.04 ~ 1.08 |
| Ingredients | cyanoacrylate |
| Solubility | Acetone |
| Flash Point | 85℃ |
■ Set Time, Tensile strength
| Materials | time (sec) | Tensile strength |
| Chloroprene | 3 ~ 5 | 5 |
| Metal Plate | 3 ~ 7 | 150 ~ 190 |
| Stainless Steel | 50 ~ 70 | 140 ~ 170 |
| ABS | 5 ~8 | 50 ~ 70 |
| Acryloyl | 5 ~ 10 | 60 |
| NBR | 2 ~ 5 | 20 |
| Wood | 50~ 60 | 100 |
| Leather | 5 ~ 10 | 90 |
1) cps : centi poise (Water is 1.01 cps at 20℃)
2) Test method : JIS k6861(1997) for cyanoacrylate
3) * : meterials were broken while testing
■ Packing Unit
- 20g : 25ea / box, 400ea / carton- 50g : 20ea / box, 240ea / carton
- Other : 5g, 10g, 100g, 150g, 500g, 1kg, 2kg, 20kg
(Contact us for quotation)
■ How to use 4011
Bond terms
- Working time : It is the time that a mixture is able to coat after two liquid stirring a mixture.
(Usually the initial viscosity will be double times or nearly 60% of peak heating time.)
- Setting time : It is the time that bond strength and physical properties(tensile, compression, hardness, etc.) are almost stable.
- Tensile strength : It is result of maximum load divided by the area, when the applied adhesive things then test for tensile strength.
- Thixotropy : It is gel in the stationary status. Only it turns to liquidity as application of agitation or vibration. After leaving it, it turn back to the gel status.
