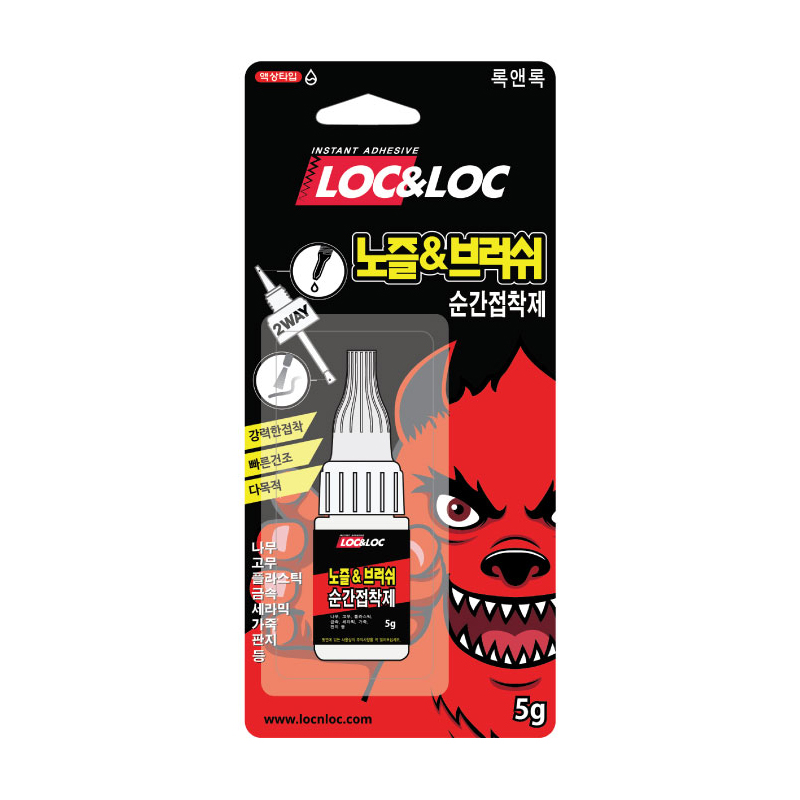

| Product | Two-way type (Nozzle+Brush) instant adhesive |
|---|---|
| Code | |
| Volume | |
| Products Summary |
Product description
| - Nozzle + brush adhesive - A multi-purpose and a medium viscosity (85-105 cps) product exhibits fast adhesion speed and strong adhesion to substrates such as wood, leather, paper, metal, rubber, plastic, and ceramics. |
 |
Type : Two-Way type 5g |
Feature
| Appearance | Clear Liquid |
| Viscosity | 85 ~ 102cps |
| Specific Gravity | 1.04 ~ 1.08 |
| Ingredients | cyanoacrylate |
| Solubility | Acetone |
| Flash Point | 85℃ |
Set Time, Tensile strength
| Materials | time (sec) | Tensile strength |
| Chloroprene | 3 ~ 5 | 5 |
| Metal Plate | 3 ~ 7 | 150 ~ 190 |
| Stainless Steel Metal Plate | 50 ~ 70 | 140 ~ 170 |
| ABS | 5 ~8 | 50 ~ 70 |
| Acrylic | 5 ~ 10 | 60 |
| NBR | 2 ~ 5 | 20 |
| Wood | 50~ 60 | 100 |
| Leather | 5 ~ 10 | 90 |
1) cps : centi poise (Water is 1.01 cps at 20℃)
2) Test method : JIS k6861(1997) for cyanoacrylate
3) * : meterials were broken while testing
Packing Unit
- 5g : 20ea / boxHow to use Two-Way type(Nozzle+Brush)
Bond terms
- Working time : It is the time that a mixture is able to coat after two liquid stirring a mixture.
(Usually the initial viscosity will be double times or nearly 60% of peak heating time.)
- Setting time : It is the time that bond strength and physical properties(tensile, compression, hardness, etc.) are almost stable.
- Tensile strength : It is result of maximum load divided by the area, when the applied adhesive things then test for tensile strength.
- Thixotropy : It is gel in the stationary status. Only it turns to liquidity as application of agitation or vibration. After leaving it, it turn back to the gel status.
