제품 정보
| Product | General type instant adhesive |
|---|---|
| Code | SLL-4015-10 , SLL-4015-20 |
| Volume | 10g, 20g |
| Products Summary | Suitable for metals, rudder, plastics, ceramics,etc |
Product description
| - Low viscosity (2 ~ 3cps) - Fast Adhesion - Suitable for metals, rubber, plastics, ceramics, etc. - Childproof Cap : Patent No. 10-0610513 |
 |
 |

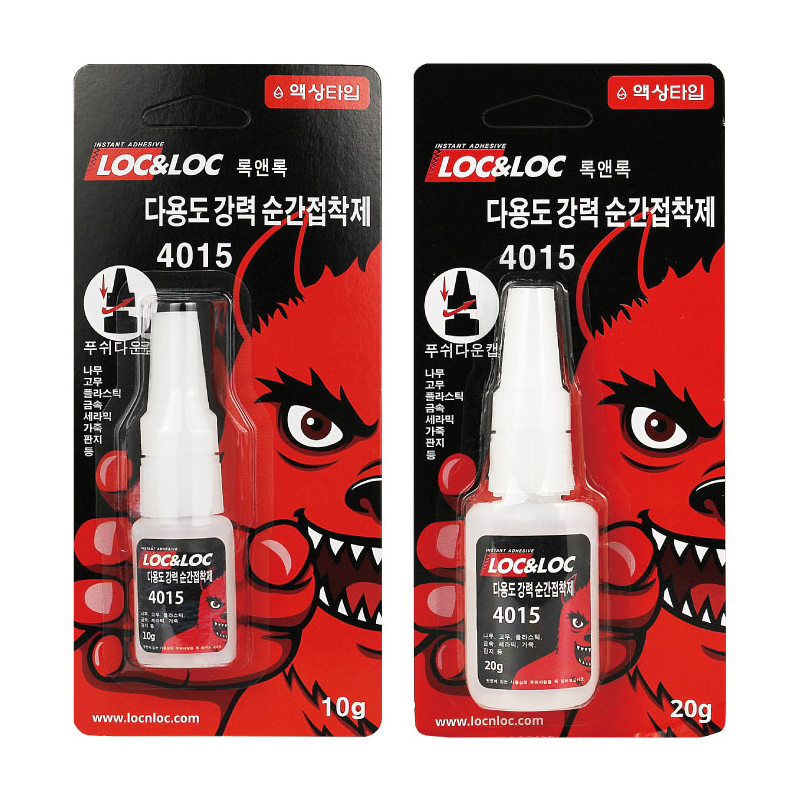

Type : 4015 10g |
Type : 4015 20g |
Feature
| Appearance | Clear Liquid |
| Viscosity | 2~3cps |
| Specific Gravity | 1.1 |
| Ingredients | Etyl cyanoacrylate |
| Solubility | Acetone |
| Flash Point | 85℃ |
Set Time, Tensile strength
| Materials | time (sec) | Tensile strength |
| vinyl chloride | 5 ~ 10 | 6 |
| Metal Plate | 10 ~ 20 | 15 |
| Aluminium | 5 ~ 15 | 8 |
| ABS | 5 ~ 10 | 6 |
| PC | 5 ~ 10 | 8 |
| NBR | 5 ~ 10 | 5 |
1) cps : centi poise (Water is 1.01 cps at 20℃)
2) Test method : JIS k6861(1997) for cyanoacrylate
3) * : meterials were broken while testing
Packing Unit
-10g : 120ea / carton-20g : 120ea / carton
How to use General type
Bond terms
- Working time : It is the time that a mixture is able to coat after two liquid stirring a mixture.
(Usually the initial viscosity will be double times or nearly 60% of peak heating time.)
- Setting time : It is the time that bond strength and physical properties(tensile, compression, hardness, etc.) are almost stable.
- Tensile strength : It is result of maximum load divided by the area, when the applied adhesive things then test for tensile strength.
- Thixotropy : It is gel in the stationary status. Only it turns to liquidity as application of agitation or vibration. After leaving it, it turn back to the gel status.
