제품 정보

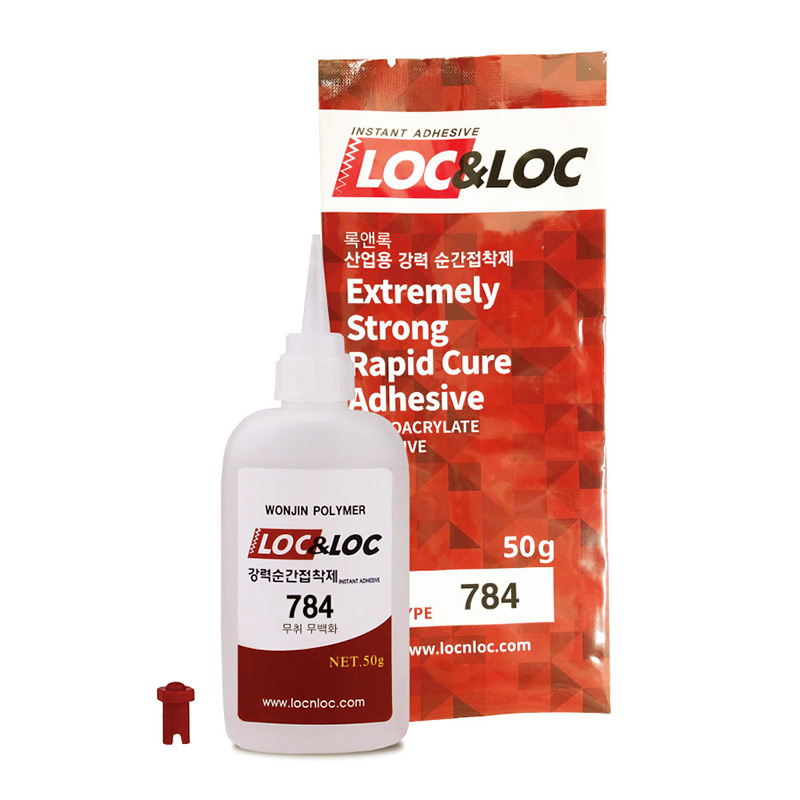

| Product | 784 (Odorless) |
|---|---|
| Code | SLL-784-50 |
| Volume | 50g |
| Products Summary | Low-viscosity(3cps) Low odor, stimulation and blooming |
Product description
- Low odor, stimulation and blooming |
 |
Type
: 784 50g |
Feature
| Appearance | Clear Liquid |
| Viscosity | 3 cps |
| Specific Gravity | 1.1 |
| Ingredients | Etyl cyanoacrylate |
| Solubility | Acetone |
| Flash Point | 85℃ |
Set Time, Tensile strength
| Materials | time (sec) | Tensile strength |
| vinyl chloride | 10 ~ 15 | 6 |
| Metal Plate | 10 ~ 15 | 15 |
| Aluminium | 10 ~ 15 | 8 |
| ABS | 10 ~ 15 | 6 |
| PC | 10 ~ 15 | 6 |
| PMMA | 5 ~ 10 | 6 |
1) cps : centi poise (Water is 1.01 cps at 20℃)
2) Test method : JIS k6861(1997) for cyanoacrylate
3) * : meterials were broken while testing
Packing Unit
- 50g : 20ea / box, 240ea / carton- Others : 5g, 20, 10g, 100g, 150g, 500g, 1kg, 2kg, 20kg
(Please contact us before order.)
How to use general adhesives
Bond terms
- Working time : It is the time that a mixture is able to coat after two liquid stirring a mixture.
(Usually the initial viscosity will be double times or nearly 60% of peak heating time.)
- Setting time : It is the time that bond strength and physical properties(tensile, compression, hardness, etc.) are almost stable.
- Tensile strength : It is result of maximum load divided by the area, when the applied adhesive things then test for tensile strength.
- Thixotropy : It is gel in the stationary status. Only it turns to liquidity as application of agitation or vibration. After leaving it, it turn back to the gel status.
